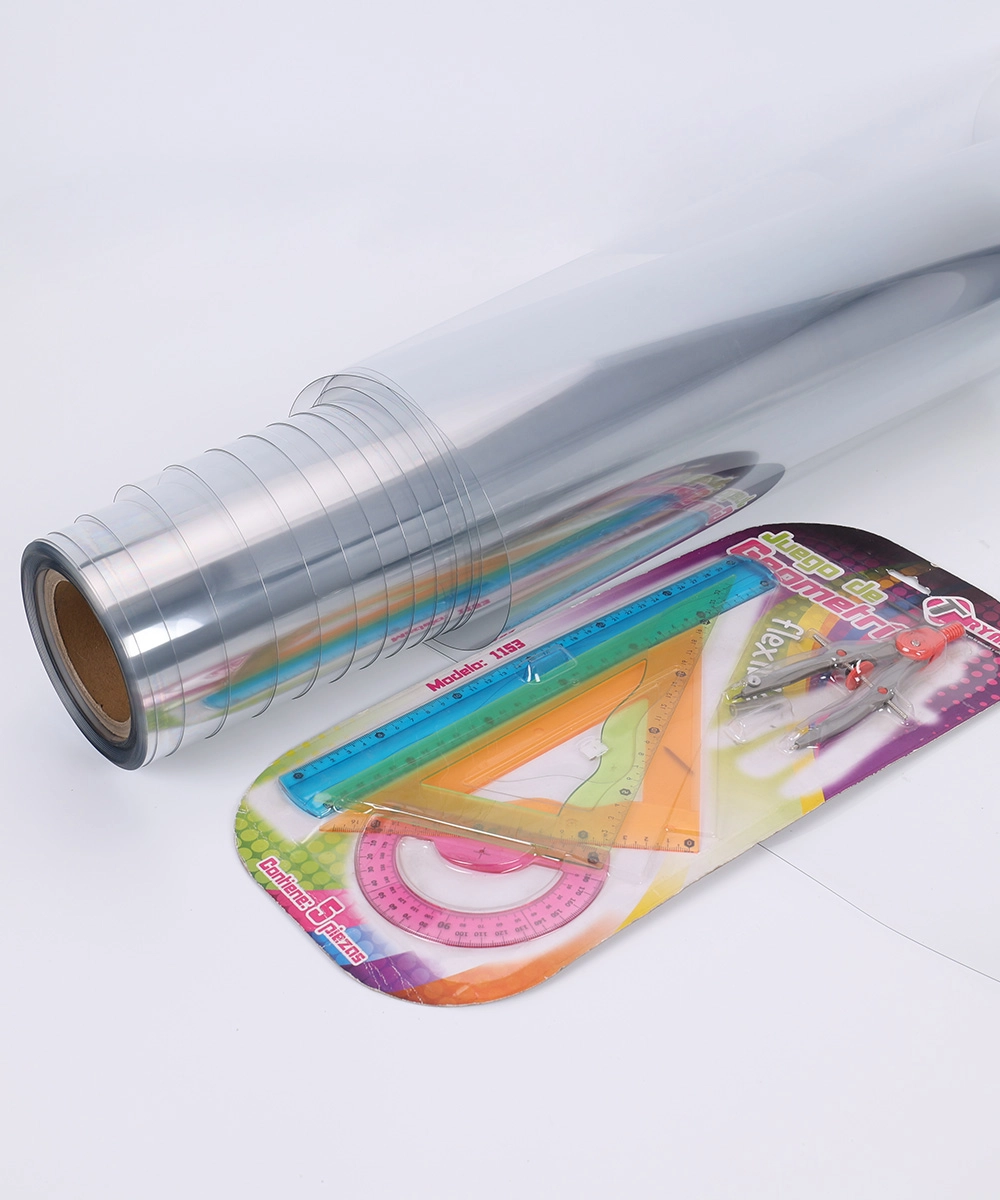

GAG consists of three layers of PET material: the outer layers are made of PETG material, while the middle layer uses APET material. Combining the advantages of both, GAG not only offers excellent adhesion but also boasts superior toughness.
1. High transparency, exceeding 90%
2. Excellent adhesion properties, suitable for high-frequency heat sealing and adhesive bonding packaging
3. More cost-effective than PETG
1. Packaging for hardware products
2. Packaging for cosmetic components
3. Packaging for premium products
|
Item |
Conductive |
Antistatic |
Normal |
|
Density(±0.02) |
1.35g/cm3 |
1.35g/cm3 |
1.35g/cm3 |
|
Thickness(±0.015) |
0.2mm-1.3mm |
0.2mm-1.3mm |
0.2mm-1.3mm |
|
S.R.(Ω) |
104-8 |
109-11 |
≧1012 |
|
Width Range (±1.0mm) |
300mm-1000mm |
300mm-1000mm |
300mm-1000mm |
|
Max. Weight(±0.5KG) |
550KG |
550KG |
550KG |
GAG APET Plastic Film is a high-performance, multi-layer PET composite sheet designed for advanced thermoforming, packaging, and industrial applications. Structurally engineered as PETG/APET/PETG, this three-layer co-extruded material combines the rigidity and clarity of APET with the superior processability and toughness of PETG. The result is a plastic sheet that delivers excellent transparency, mechanical strength, and thermoforming efficiency while maintaining cost-effectiveness compared with pure PETG materials.
At Haining Hongkai Technology Co., Ltd., high-quality GAG sheets are produced using advanced extrusion technology to ensure consistent thickness, optical clarity, and excellent forming performance. The product is widely used in blister packaging, clamshell packaging, folding boxes, medical packaging trays, and display materials, making it one of the most versatile PET-based packaging materials available.
GAG sheet is manufactured using a co-extrusion process that bonds three layers of PET-based polymers together in a single extrusion cycle. This layered configuration significantly enhances the material’s functional properties.
| Layer Position | Material | Function |
| Outer Layer (Top) | PETG | Provides excellent surface toughness, printability, and heat sealing capability |
| Core Layer | APET | Supplies rigidity, dimensional stability, and optical clarity |
| Outer Layer (Bottom) | PETG | Enhances bonding, chemical resistance, and processing performance |
This PETG/APET/PETG composite design balances performance and cost by combining the advantages of both materials in one sheet.
Because of this optimized structure, GAG film is frequently used in high-end packaging that requires both aesthetic appeal and mechanical protection.
GAG sheets provide a unique combination of optical clarity, mechanical strength, and processability, making them suitable for a wide range of industrial and packaging applications.
| Property | Typical Value |
| Density | 1.30 – 1.35 g/cm³ |
| Thickness Range | 0.18 mm – 2.0 mm (customizable) |
| Width Range | 300 – 1400 mm |
| Transparency | ≥ 90% light transmission |
| Shrinkage Rate | Approx. 0.5% |
| Vicat Softening Temperature | ~68 – 72°C |
| Surface Tension | ≥ 38 mN/m |
These values provide excellent dimensional stability and high clarity, which are critical for packaging and display applications.
One of the major advantages of GAG sheet is its high impact resistance. The PETG outer layers absorb stress and prevent cracking, while the APET core maintains structural rigidity. This combination ensures that thermoformed products remain durable during transportation and handling.
These properties make GAG sheets suitable for protective packaging applications, especially where product safety and visual display are important.
GAG APET film is widely recognized for its outstanding thermoforming capabilities.
Another key advantage is that GAG sheets can often be thermoformed without pre-drying or preheating, improving manufacturing efficiency.
| Thermoforming Method | Compatibility |
| Vacuum forming | Excellent |
| Pressure forming | Excellent |
| Blister forming | Excellent |
| Cold bending | Good |
| Heat bending | Good |
This versatility makes it ideal for automated packaging production lines.
In addition to thermoforming, GAG sheet supports a wide range of fabrication processes.
These capabilities allow manufacturers to create complex shapes and high-precision packaging components.
Sustainability has become an important factor in modern packaging design. GAG APET plastic film provides several environmental advantages.
Because it is based on PET polymer technology, GAG sheet can be recycled through established PET recycling streams, contributing to sustainable packaging solutions.
The specifications of GAG plastic film can be customized according to customer requirements and application needs.
| Parameter | Standard Range |
| Thickness | 0.18 – 2.0 mm |
| Width | 300 – 1400 mm |
| Length | Custom roll length |
| Surface Finish | Glossy / Matte |
| Color | Clear or customized |
| Form | Roll or sheet |
Customized options are available for anti-static, conductive, or colored sheets depending on industry requirements.
Thanks to its transparency, durability, and excellent forming performance, GAG plastic film is widely used across multiple industries.
Its high clarity allows products to remain visible while being protected from physical damage.
The material protects food products while maintaining attractive shelf presentation.
The material’s clarity, strength, and hygienic properties make it suitable for healthcare packaging environments.
These applications benefit from the material’s ability to combine visual presentation with protective strength.
Understanding the differences between these materials helps manufacturers choose the best solution for their products.
| Property | GAG Sheet | PETG Sheet | APET Sheet |
| Structure | PETG/APET/PETG | PETG | APET |
| Transparency | Very high | Very high | High |
| Impact resistance | High | Very high | Medium |
| Thermoforming | Excellent | Excellent | Good |
| Cost | Moderate | Higher | Lower |
| Printability | Excellent | Excellent | Good |
GAG sheet offers a balanced solution that delivers PETG-like performance at a more economical cost.
Modern GAG sheets are produced using high-precision PET co-extrusion lines.
This controlled manufacturing process ensures consistent thickness, optical clarity, and structural integrity.
At Haining Hongkai Technology Co., Ltd., GAG APET plastic sheets are manufactured using advanced extrusion technology and strict quality control standards.
The company specializes in PET-based packaging materials including:
GAG APET Plastic Film is a modern, high-performance PET composite material designed to meet the growing demands of thermoforming and packaging industries. With its three-layer PETG/APET/PETG structure, it delivers excellent transparency, high impact strength, and superior thermoforming properties while maintaining cost efficiency.
Its versatility makes it suitable for applications ranging from food packaging and medical trays to consumer product packaging and retail displays. As industries continue to seek environmentally friendly and recyclable materials, GAG sheet stands out as a reliable and sustainable alternative to traditional plastics.
